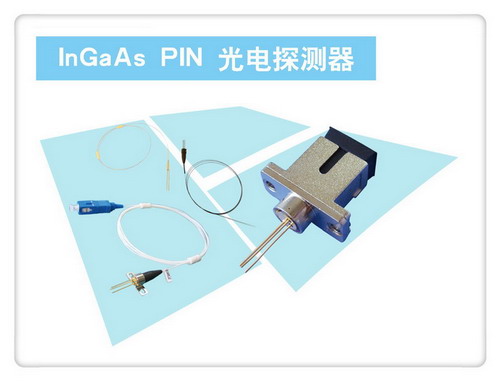

InGaAs PIN Photodetector

The key features

● Plane semiconductor design and medium passivation
● 3 pin coaxial streamline shape design
● Excellent noise characteristics and photoelectric performance
● Airtight packaging, 100% electric aging
● Low capacitance, low dark current, high responsiveness
● High reliability
● Low accord with GR468 - core
● With various types of connectors

Application field

● DWDM power monitoring
● High speed test system
● Measuring instrument
● Optical communication system
● Analog CATV & CDMA

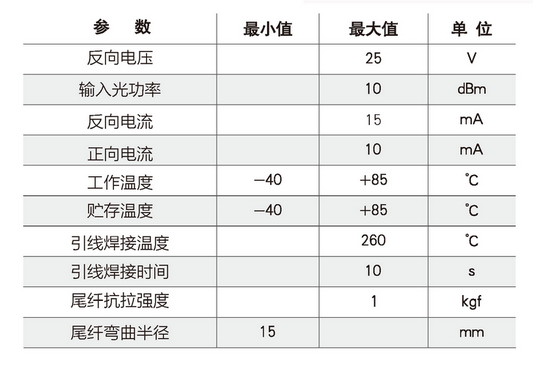

Rated limit (T = 25℃)

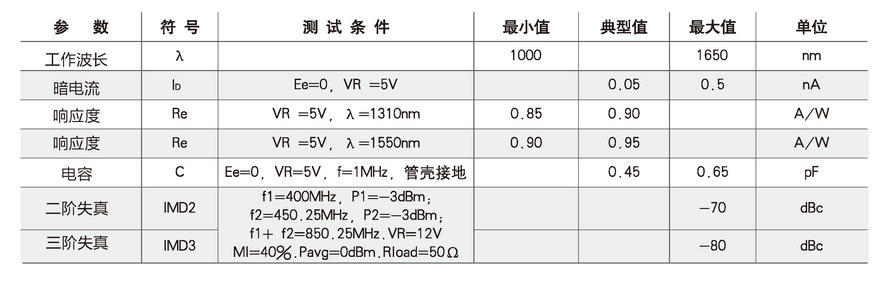

Main performance index (T = 25℃)
